FPC description:
FPC model:HQ00537
FPC Name: Infrared Health Care FPC
FPC features: Double layer board, double-sided film coating, whiteboard, black text, OSP antioxidant
FPC specifications:
1.According to your needs to customize different material thickness and process requirements Infrared Health Care FPC and other LED flexible mask circuit board, single and double-sided multi-layer wiring.
2.Good flexibility and resistance to bending
The factory has a professional bending tester, each batch of materials through
Tens of thousands of bending tests before mass production.
FPC Design Parameters Overview
-
Dimensions
- Precision FPC: Maximum size is 240mm x 500mm with a maximum allowable limit of 250mm x 500mm.
- Roll Material Board: Maximum width of 240mm and maximum length of 100 meters.
-
Number of Layers
- Single-Layer Boards: Simple structure, ideal for industrial control and electronic instruments with straightforward circuitry.
- Double-Layer Boards: Feature two copper foils, increased vias, and are suitable for applications in mobile phones and automotive instruments.
-
Solder Mask Color Options
- Yellow: Recommended for most products, including various cable products.
- Black: Commonly used in high-end or light-sensitive applications such as cars, mobile phones, LED displays, etc.
- White: Includes an additional white coating, ideal for products requiring reflection, like lighting fixtures and medical beauty devices.
-
Copper Foil Thickness Options
- Precision FPC Single Panel: 18um (0.5oz) or 35um (1oz).
- Precision FPC Double-Layer Board: 12um (0.33oz), 18um (0.5oz), or 35um (1oz).
- Ordinary FPC Single Panel: Options include 18um/25um/35um (1oz) or 50um.
- Ordinary FPC Double-Layer Board: Choices are 18-25um, 25-25um, 35-35um, or 35-70um.
-
Minimum Line Width/Spacing
- Recommended minimum of 3mil to reduce manufacturing difficulty and defect rates.
Certificates and Honors
Please note:
All photos on this site are real. Due to changes in lighting, shooting Angle, and display resolution, the image you see may have some degree of chromatic aberration. GongDong HongQi is a professional circuit boards manufacturer with 16 years of history in China. Our products are updated and upgraded every year and We specialize in all kinds of FPC sample making and customization services, If you are interested in our products, please tell us your requirements, we will help you to provide professional solutions, substrate production, wiring, principle design, mold, patch, plug-in and others one-stop service.
please contact us on line or E-mail to us, and we will provide you with one-on-one service from our professional sales team.Thank you for your time.
|
|

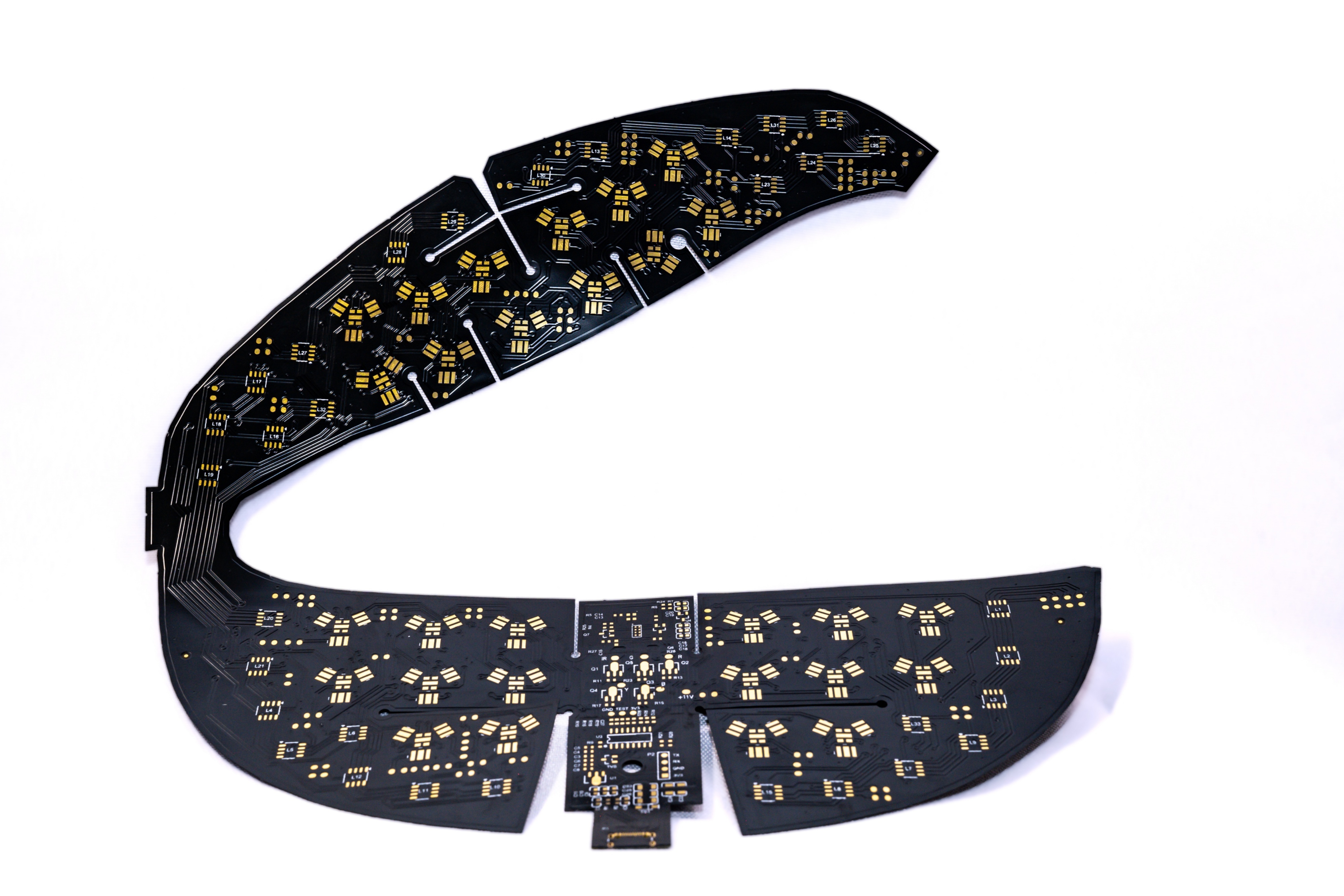

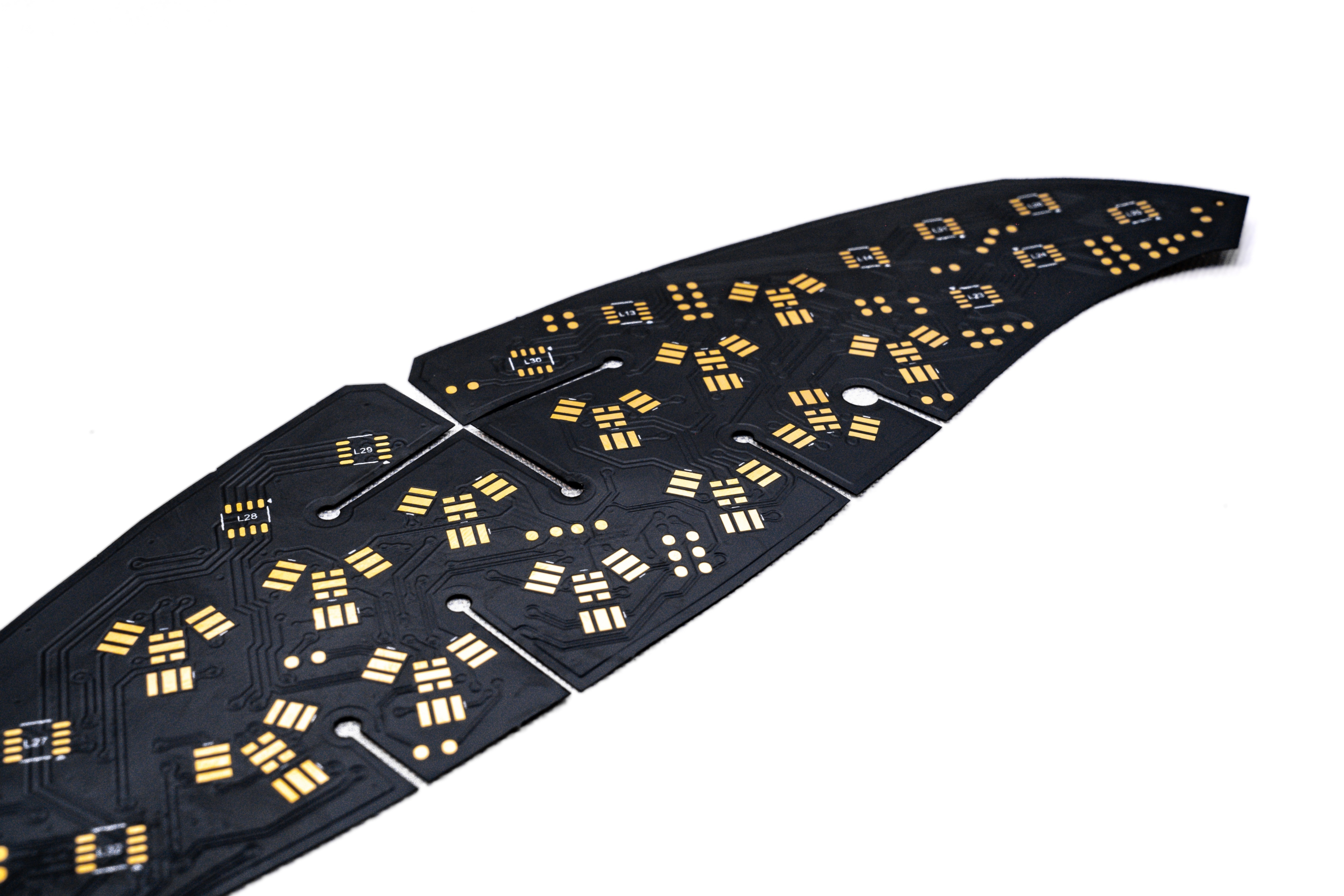

Customized Medical Beauty LED Neck protection FPC Cable Accessories Polyimide Base Material Flexible Circuit Board Images
|
